Water Level Relay Geya

€40.00

GRL802

Water Pump Liquid Level /Dry run Switch Water Level Float Switch 10A ACDC24-240V

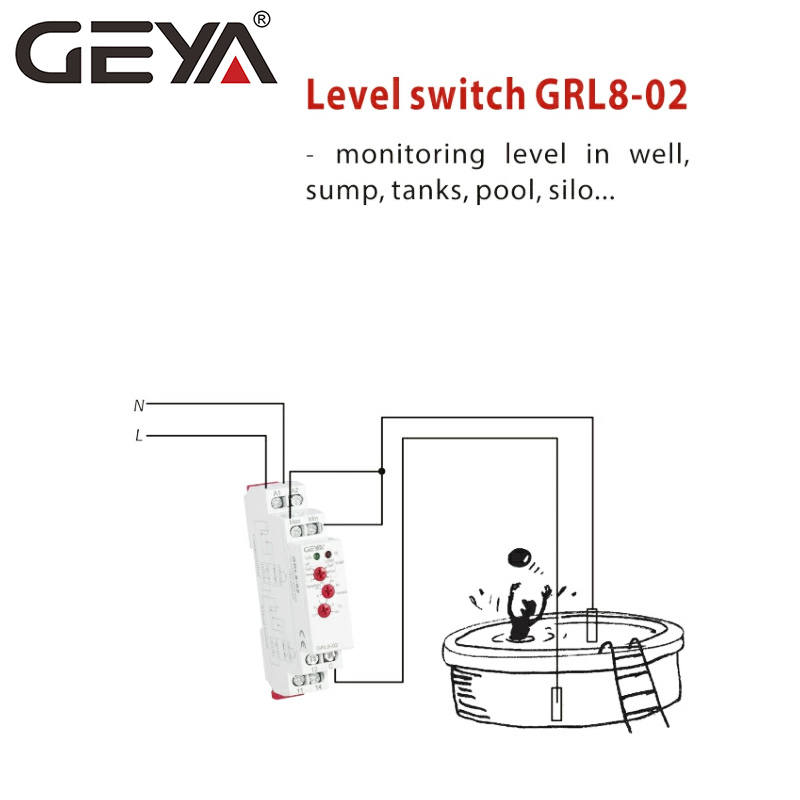

Designed for monitoring level in wells, basins, reservoirs
Protect pump from working without water presence

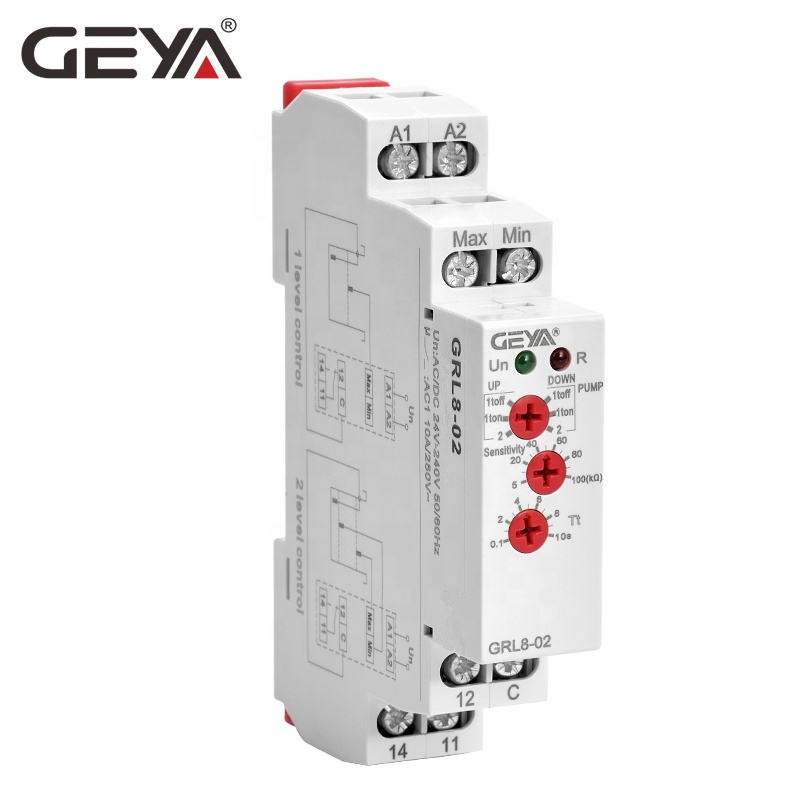

– GRL8-02 2 level control mode
– Choice of function PUMP UP, PUMP DOWN (Emptying of Filling)
– Adjustable time delay on the output (0.1 – 10s).
– Sensitivity adjustable by a potentiometer (5-100K).
– Galvanically separated supply voltage AC/DC 24-240V. – Output 1SPDT 10A/AC1
– Relay status is indicated by LED.
– 1-MODULE,DIN rail mounting.

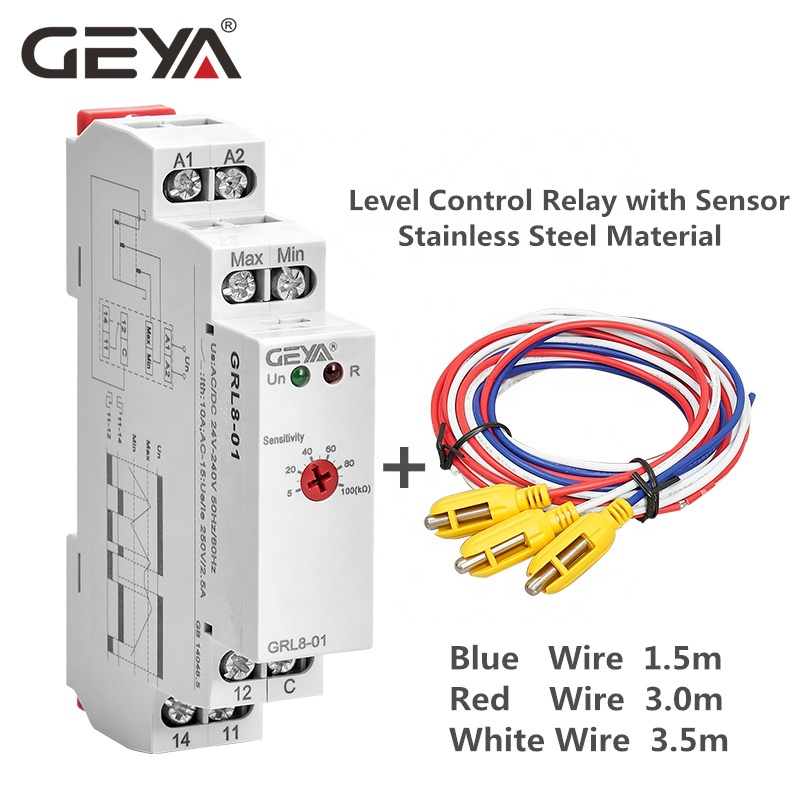

– Matching electrodes supplied separately PLT15M
