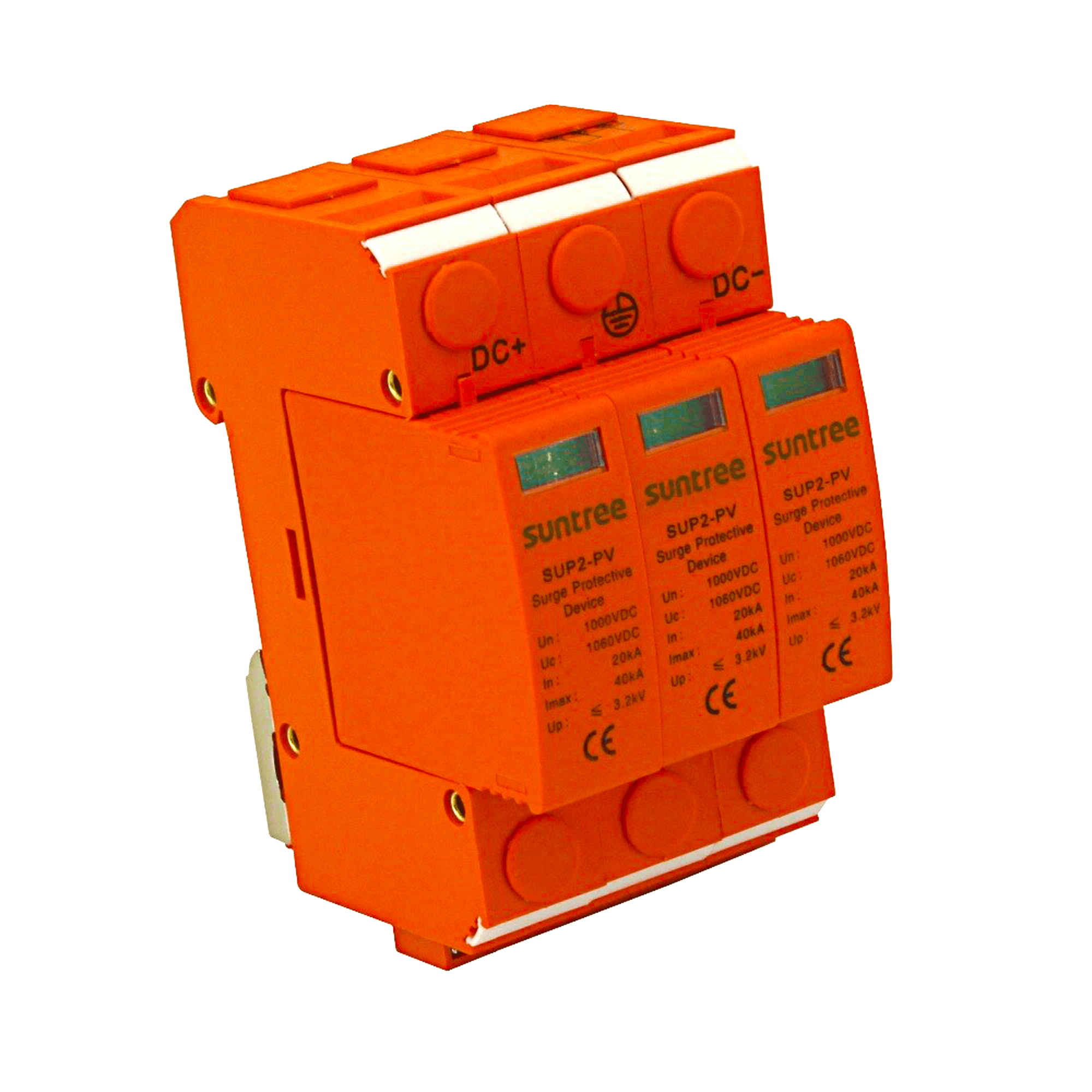

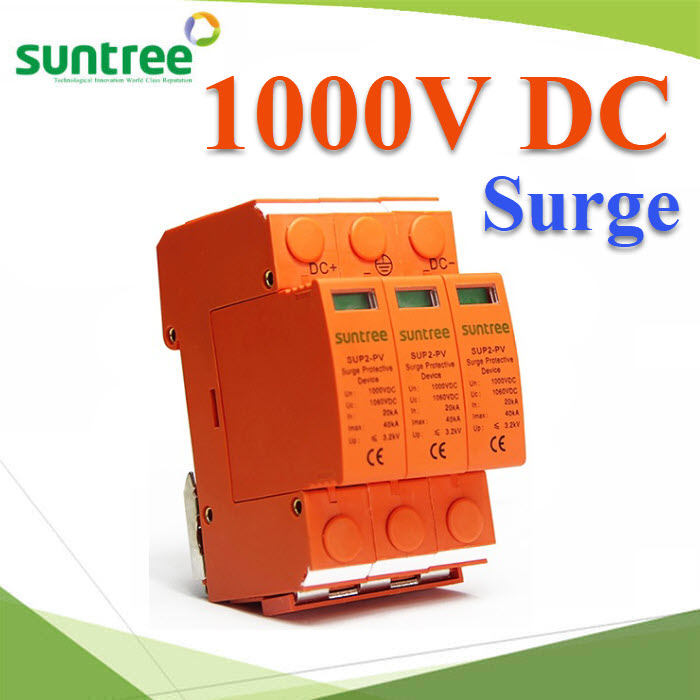

Surge Arrestor DC 1000 volt
€43.00
SUP2PV
Arrestor used in PV system side to protect against surge currents
Main technical parameters
|
SUP2PV Series Surge Protector
|
SUP2PV
|
|||
|
UCPV (V DC)
|
1000V
|
|||
|
Max System Discharge Current (8/20 μs) [Imax]
|
40ka | |||
|
Voltage Protection Level [UP]
|
≤4.0kV
|
|||
|
Voltage Protection Level at 5kA [UP]
|
≤3.6kV
|
|||
|
Integrated Fuse Breaking Capacity/Interrupting Rating
|
40kA/1000Vdc
|
|||
|
Technology
|
Short-Circuit Interruption (SCI) Overcurrent Protection
|
|||
|
Operating Temperature Range [TU]
|
-40°C to +80°C
|
|||
|
Nominal Discharge Current (8/20 μs) [(DC+/DC-) –> PE] [n]
|
20kA
|
|||
|

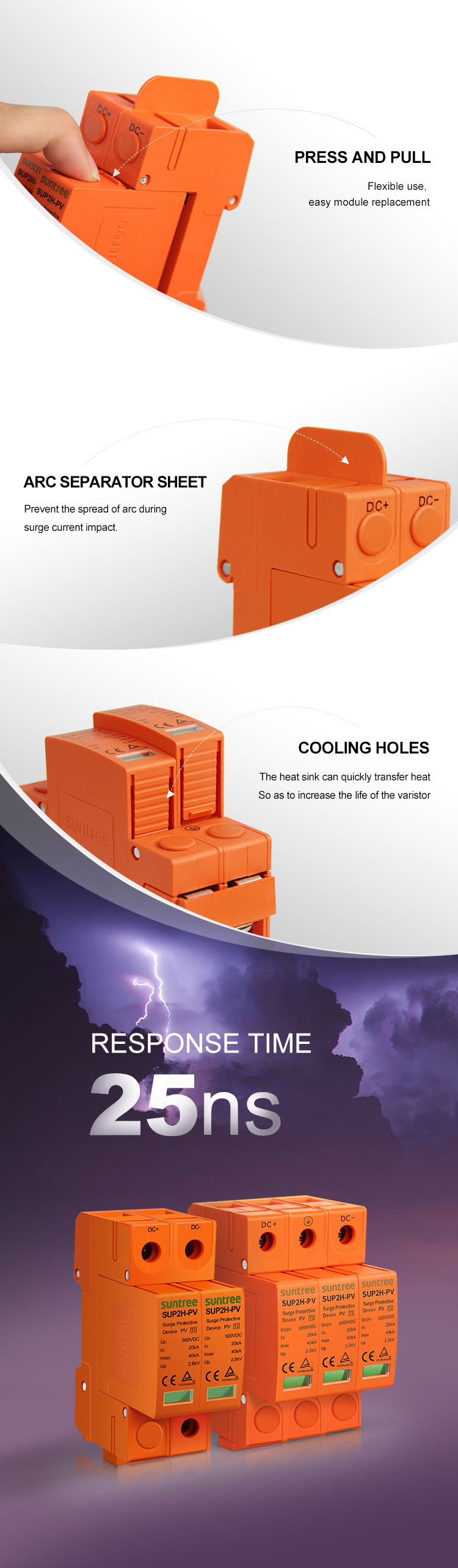

Response Time [tA]
|
<25ns
|
|||
|
Operating State/Fault Indication
|
Green (good)/Red (replace)
|
|||
|
Conductor Ratings and Cross-Sectional Area
|
Min
|
60/75°C 1.5mm2/14AWG Solid/Flexible
|
||
|
Max
|
60/75°C 35mm/2AWG Stranded/25mm2/4AWG Flexible
|
|||
|
Mounting
|
35mm DIN Rail per EN 60715
|
|||
|
Enclosure Material
|
UL 94V0 Thermoplastic
|
|||
|
Degree of Protection
|
IP20
|
|||
|
Capacity
|
3 Modules, DIN 43880
|
|||
|
Standards Information
|
IEC 61643-31 Type 2, IEC 61643-1 Class II
|
|||
