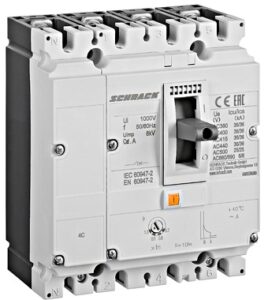

MCCB Schrack 4 pole 100A
€200.00
MX182441
Schrack MCCB 4 pole 100A

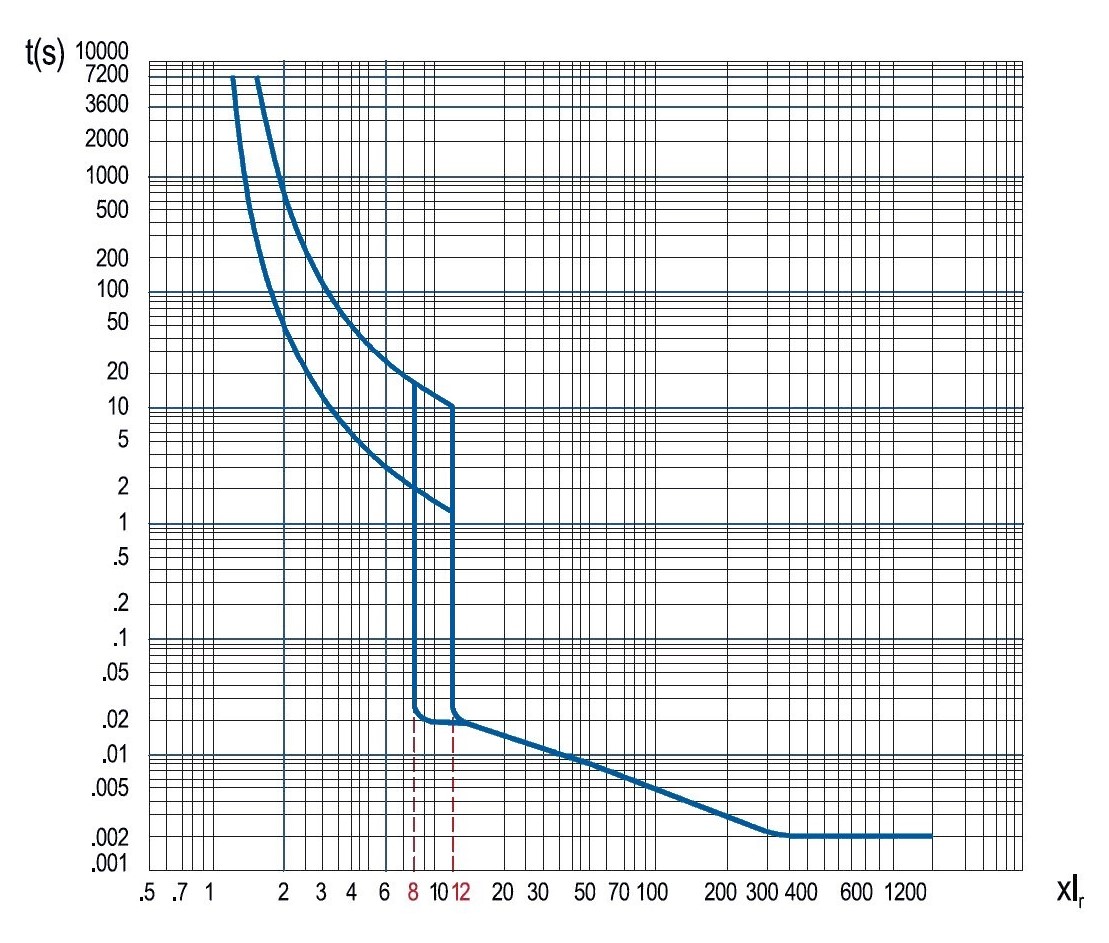

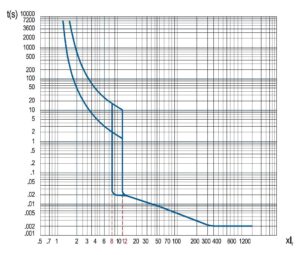

Thermo-magnetic type release TM
Thermo-magnetic release of MX breakers can be set to meet protection requirements.•Over-load protection
Setting current (A) Ir=In х 0,7-0,8-0,9-1,0
•Short-circuit instantaneous protection
Setting current (A) Ii=In х 10
Accuracy ±20%
Thermo-magnetic release of MX breakers can be set to meet protection requirements.•Over-load protection
Setting current (A) Ir=In х 0,7-0,8-0,9-1,0
•Short-circuit instantaneous protection
Setting current (A) Ii=In х 10
Accuracy ±20%
| Net width | 120,00mm |
|---|---|
| Net height | 140,00mm |
| Net weight | 1,55kg |
| Power loss | 35,20W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 70°C |
| Device category | circuit breaker |
| Standard | EN 60947-2 |
| Rated current | 100A |
| Rated voltage | < 690VAC |
| Short circuit switching capacity (400V) | 36kA |
| Size type | 1 |
| Tripping Unit | Thermomagnetic release – Type A |
| Poles | 4 |
| Pollution degree | 3 |
| IP Rating | IP40 |
| Rated insulation voltage [Ui] | 1000V |
| Rated impulse withsand voltage [Uimp] | 8000V |
| Rated ultimate short-circuit breaking capacity Icu | 36kA |
| Rated service breaking capacity Ics | 36kA |
| AC 380/400/415V | 36kA (Icu) / 36kA (Ics) |
| AC 440V | 36kA (Icu) / 36kA (Ics) |
| AC 500V | 25kA (Icu) / 25kA (Ics) |
| AC 660/690V | 6kA (Icu) / 6kA (Ics) |
| Electrical endurance (Operation cycle) | ## |
| AC 415V, In | 8000 |
| AC 690V, In | 2000 |
| Manufacturer | Schrack |
| Packaging units | 1 pc |
