Legrand TV socket
€5.50

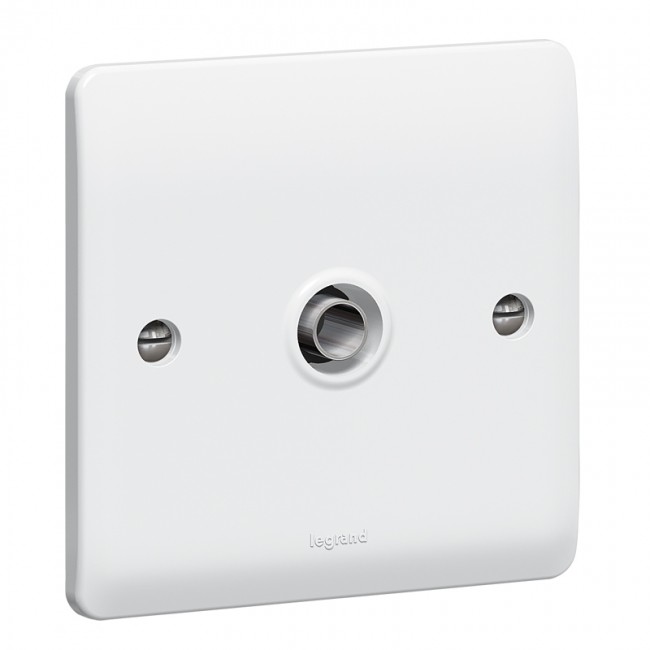

730040 Legrand Synergy TV Socket
Product characteristics
TV sockets
- For DVBT, Cablecast and satellite installation. UHD TV compatible
- Class A shielded star sockets LTE Ready (4G protected). Recommended coaxial cable: 17 VATC. Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch). Visual checking of the connection
- Meet EN 50083-4 and EN 50083-2 European directive
- TV: male connector (Ø9.5 mm)
- R: female connector (Ø9.5 mm)
- TV: 5-68 / 120-862 MHz
- R: 87.5-108 MHz
- SAT: 950-2400 MHz
- 2 modules
Single TV star sockets
- TV 9.5 mm male
General characteristics
Synergy™ – telephone, data and TV sockets – white
- Front plates: white thermoset
- Terminal screws captive and backed off ready for cabling – large angled terminal entries
- Compact mechanism for maximised wiring space
- Supplied with faceplate screw caps
