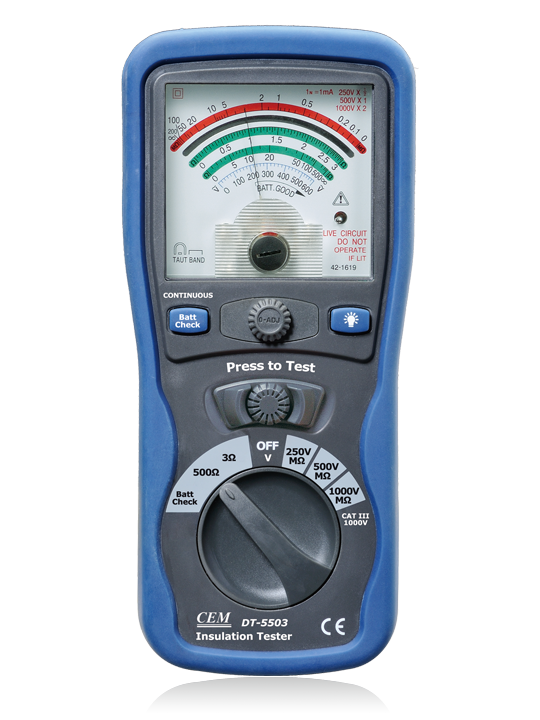

Insulation Tester Analogue DT5503

€137.00

DT5503

Insulation Test
DC Test Voltage: 250V 500V 1000V
Measuring Ranges: 0-100MΩ(1MΩ);0-200MΩ(2MΩ);0-400MΩ(4MΩ)
Rated Current 1mA DC+20%, -0%
Continuity Test Ranges
Accuracy:1.5% of Scale Length
AC Voltage Warning
AC Voltage Range:0-600V AC for 30 seconds
Withstand Voltage7400V AC 50Hz for one minute
between electrical circuits and housing case
Standard:IEC 61010-1 CAT III
