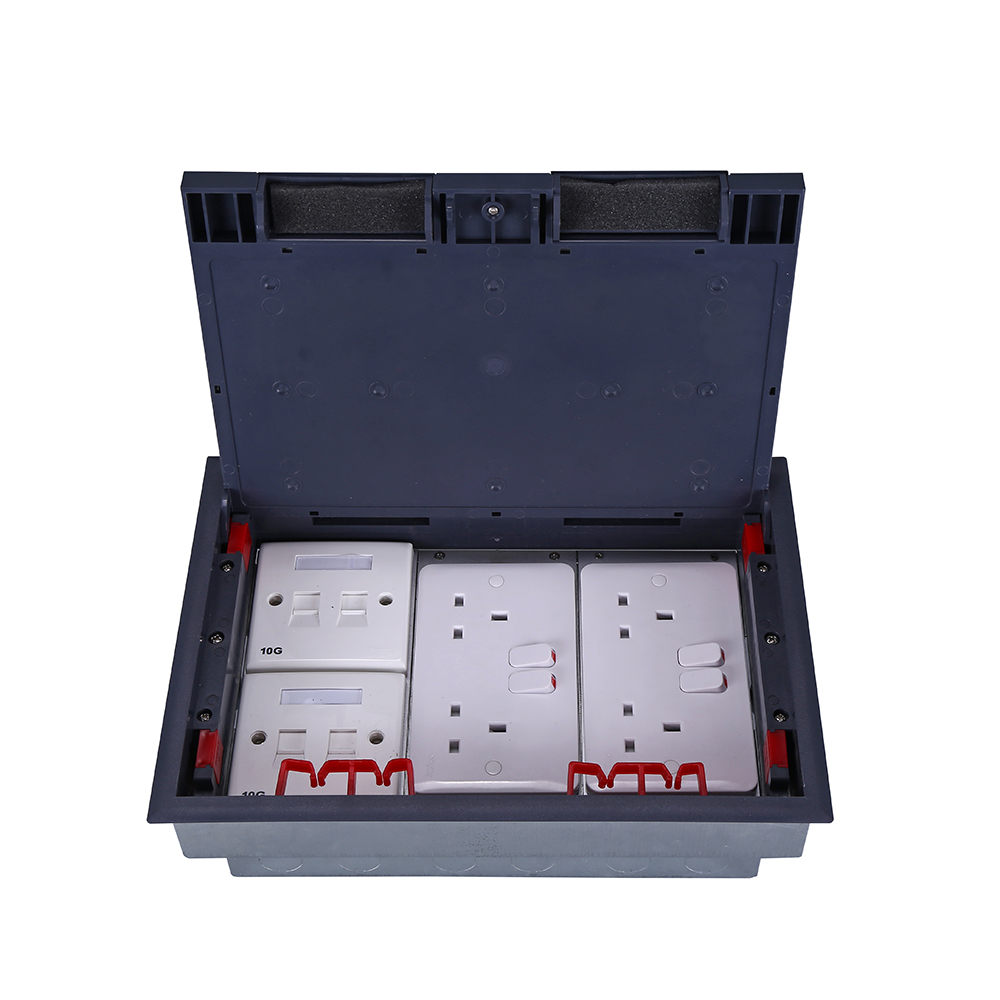

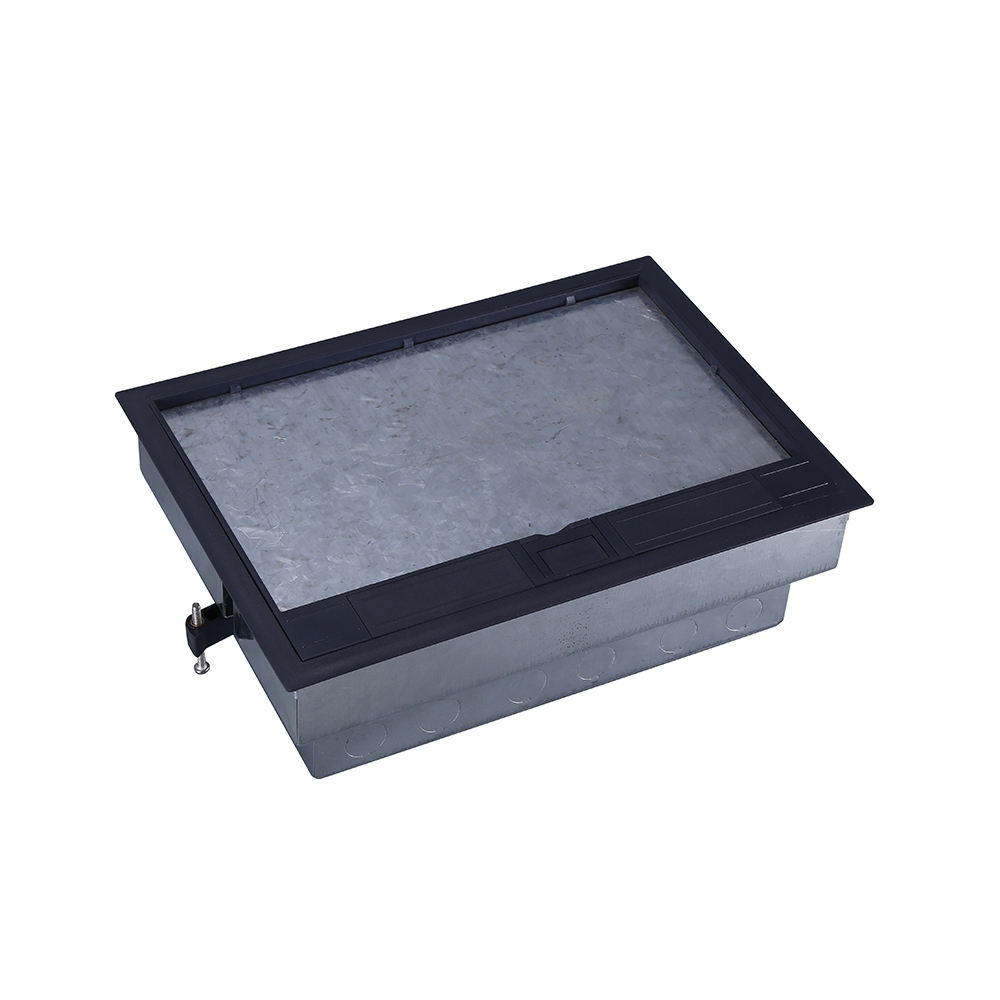

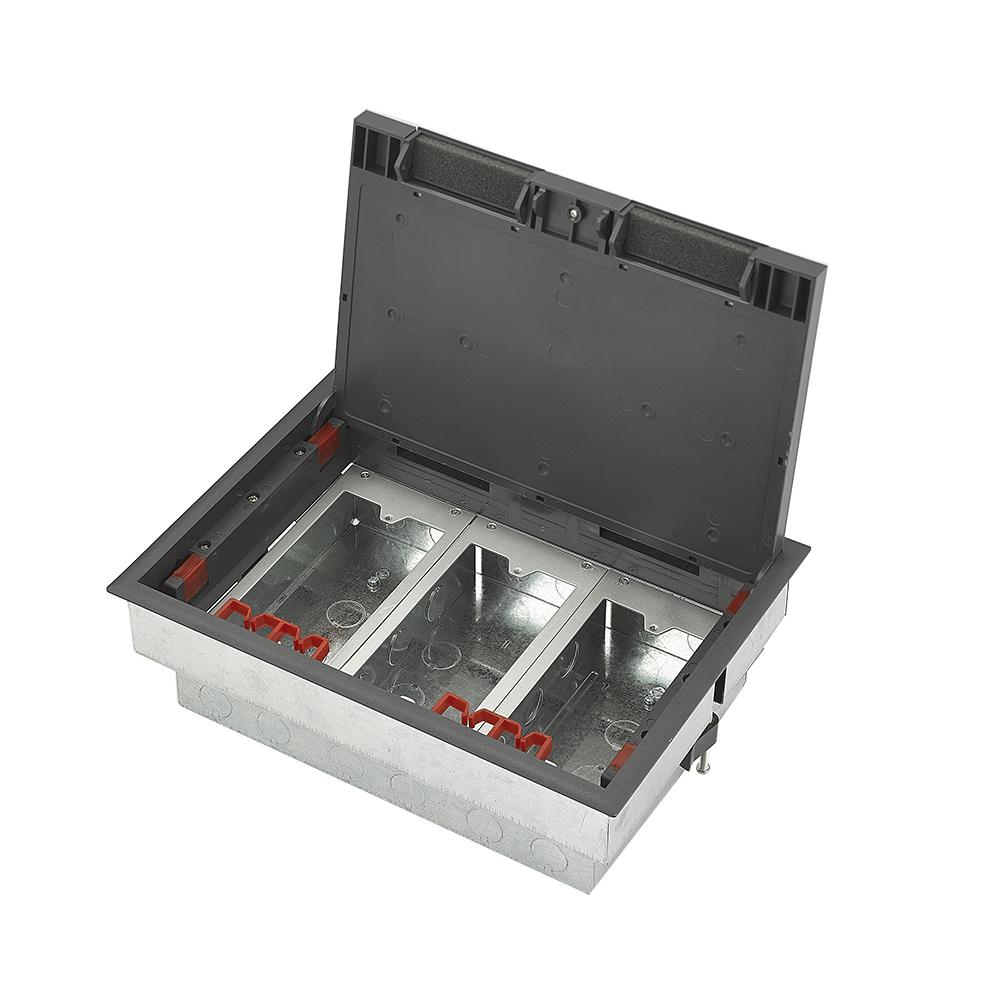

Floor box 3 row

55.00

FBX75 DOB



Serial No.
Parameter
Description
1
Panel materials
Plastic
2
Material
ABS, galvanised steel
3
Overall Frame & Lid (mm)
320.5*230.5
4
Compact floor cut-out(mm)
(305-310)*(210-215)*(76-110)
5
Thickness of concavity/Frame lid recess (mm)
8
6
Installation depth(mm)
70mm~110mm
7
Plug top clearance(mm)
13~38
8
Available modules
2*2 gang module / 1* 2×1 module
9
Accessories plates
90*80mm
