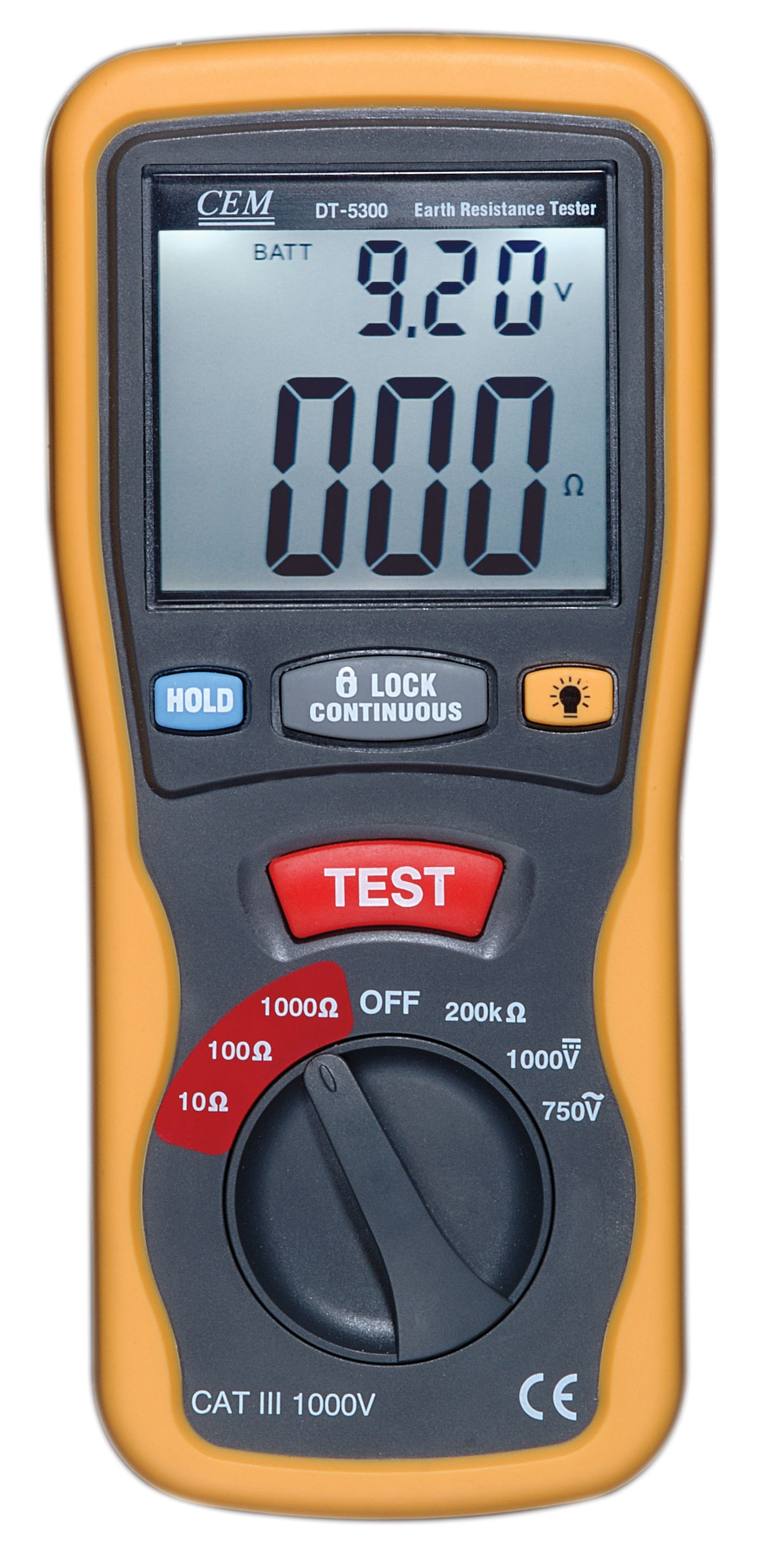

DT5300 Earth Resistance Tester CEM
€129.00
CEM DT5300
CE certified digital earth ground resistance tester.
This device is ideal for measuring the resistance of grounding
as well as the earth ground conductivity.
It can also measure other low regular and liquid resistance as well as AC/DC
voltage and resistance up to 200KOhm.
Heavy duty carrying bag is included for the protection of the device
*** Warning: To be used by Certified technician only.
Use by unskilled personnel may cause equipment failure and severe body injury.
FEATURES
* Conforms to the IEC10101, CATIII 1000V standard
* Large dual display with back light
* Test hold function for easy operation
* Automatic zero adjustment
* 2.5 times per second sampling rate
* Over range indication
* Low battery indication
* Heavy duty carrying bag
SPECIFICATIONS
Function Range Max Resolution Accuracy
Earth resistance 10 Ω 0.01 Ω +2%rdg + 0.1Ω
100 Ω 0.1 Ω +2%rdg + 3dgts
1000 Ω 1Ω +2%rdg + 3dgts
Voltage AC 0 – 750 V 1V +1.2%rdg + 10dgts
Voltage DC 0 – 1000 V 1V +0.8%rdg + 3dgts
Resistance 200 KΩ 0.1 KΩ +1.0%rdg + 2dgts
Continuity test Active sound level: < 40Ω ; Test current: < 200 mA
Operation Temp 0 deg C ~ 40 deg C (<80%R.H.)
Storage Temp -10 deg C ~ 60 deg C (<70%R.H.)
Power Source 1.5V AA size Battery x 6 (included)
